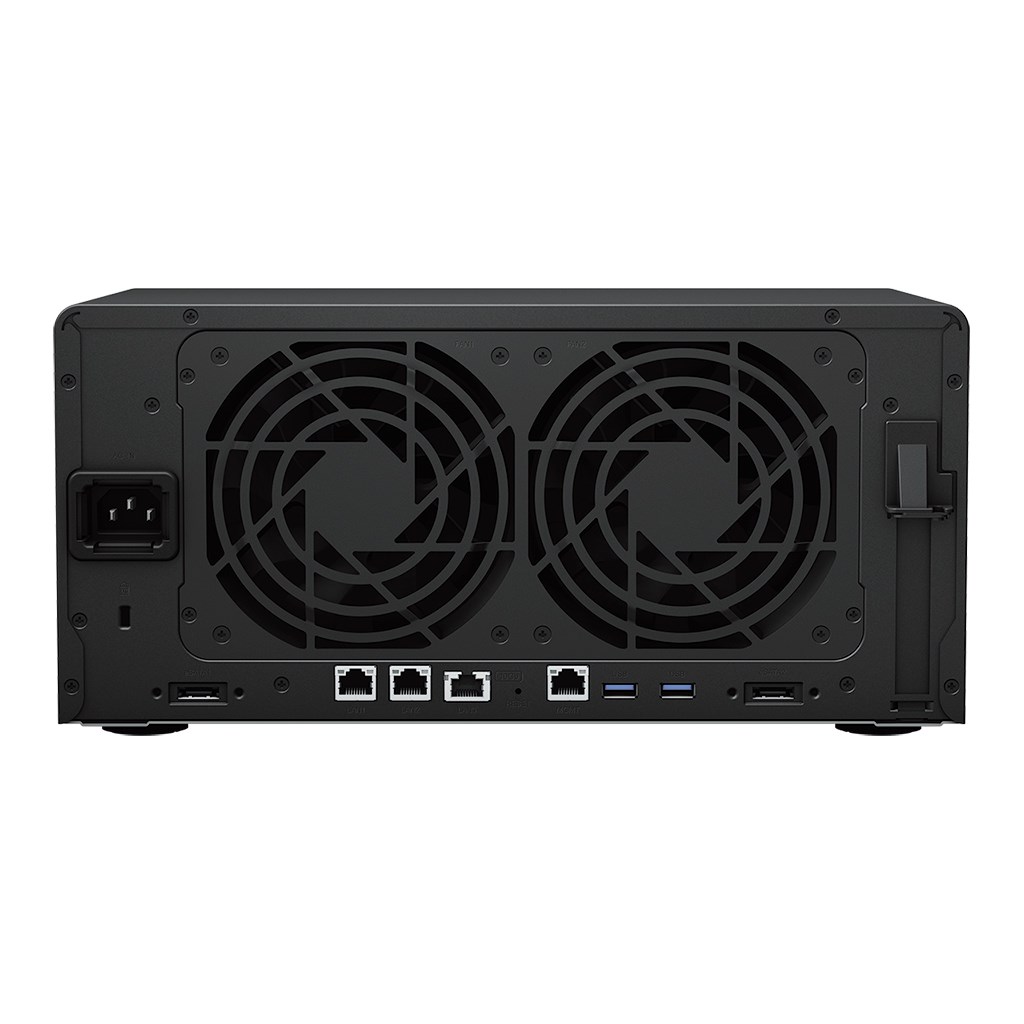

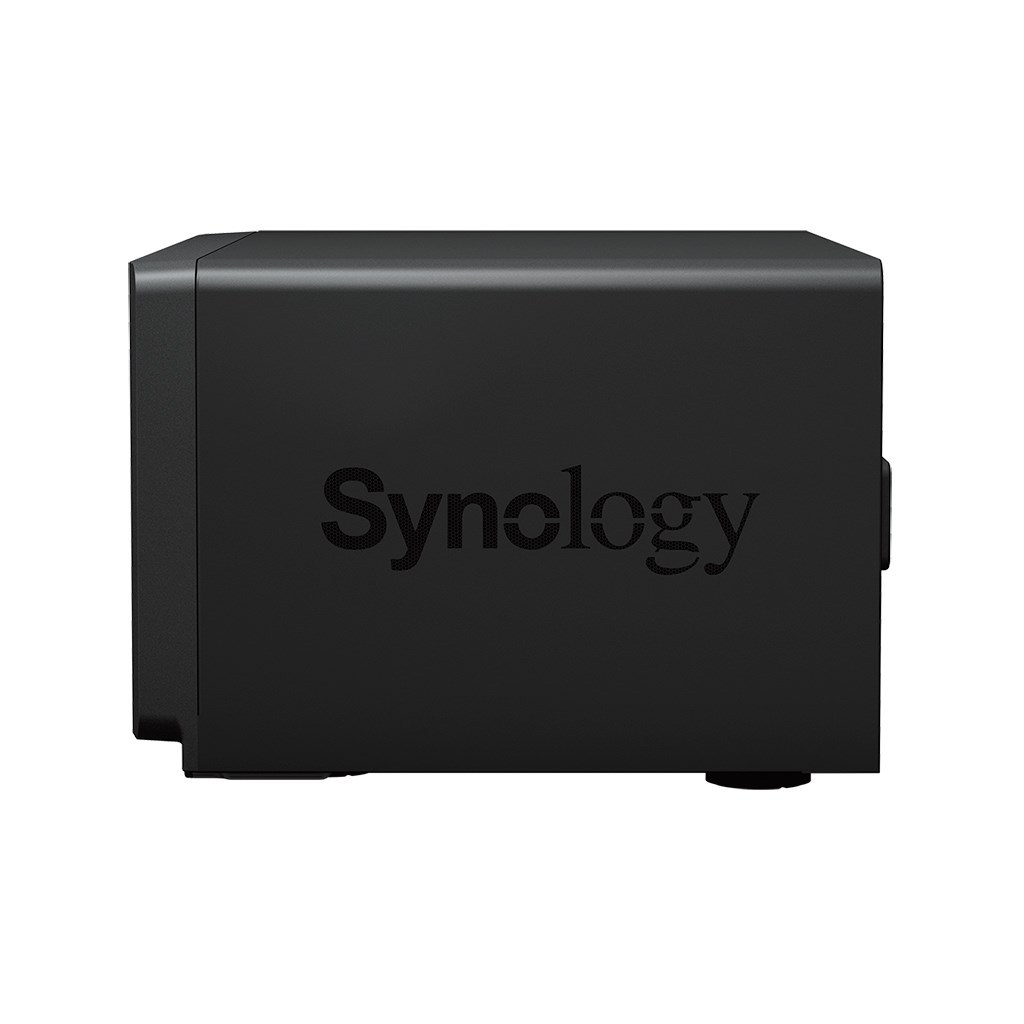

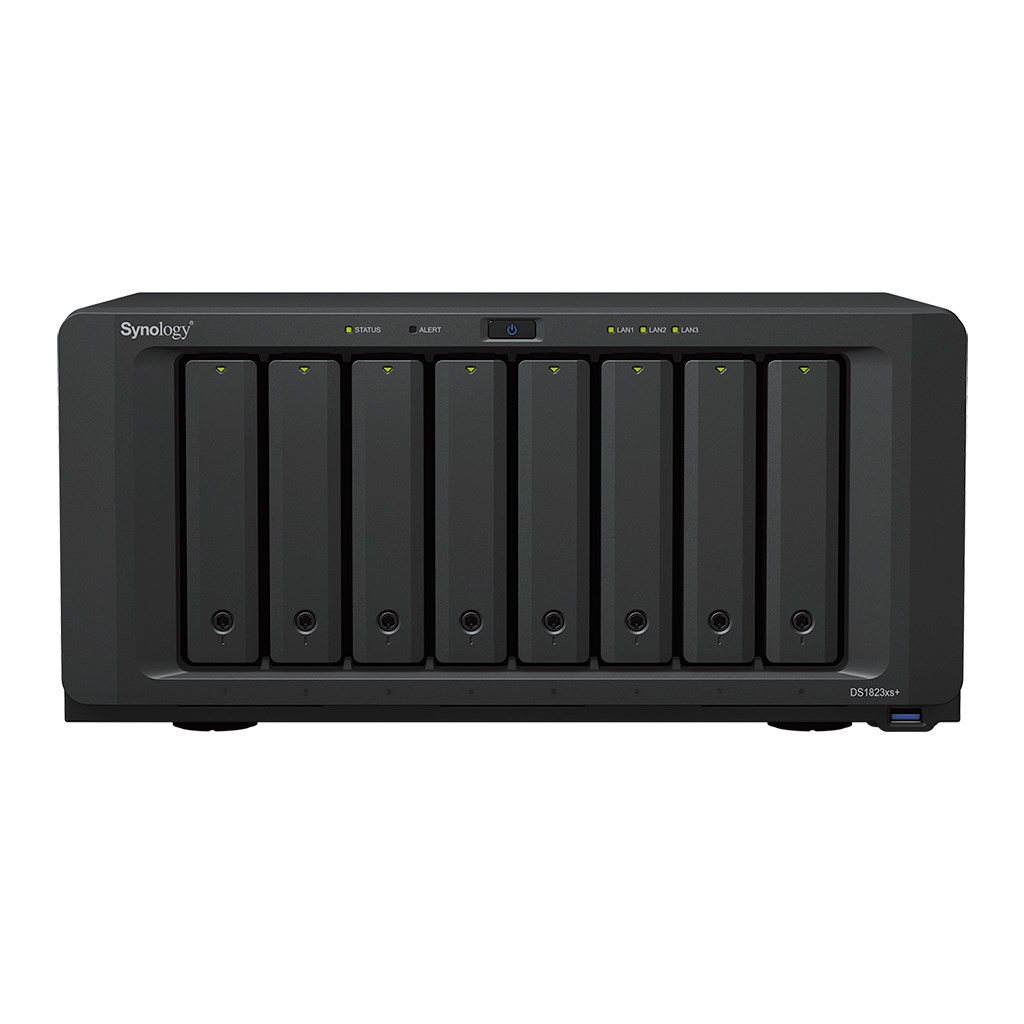

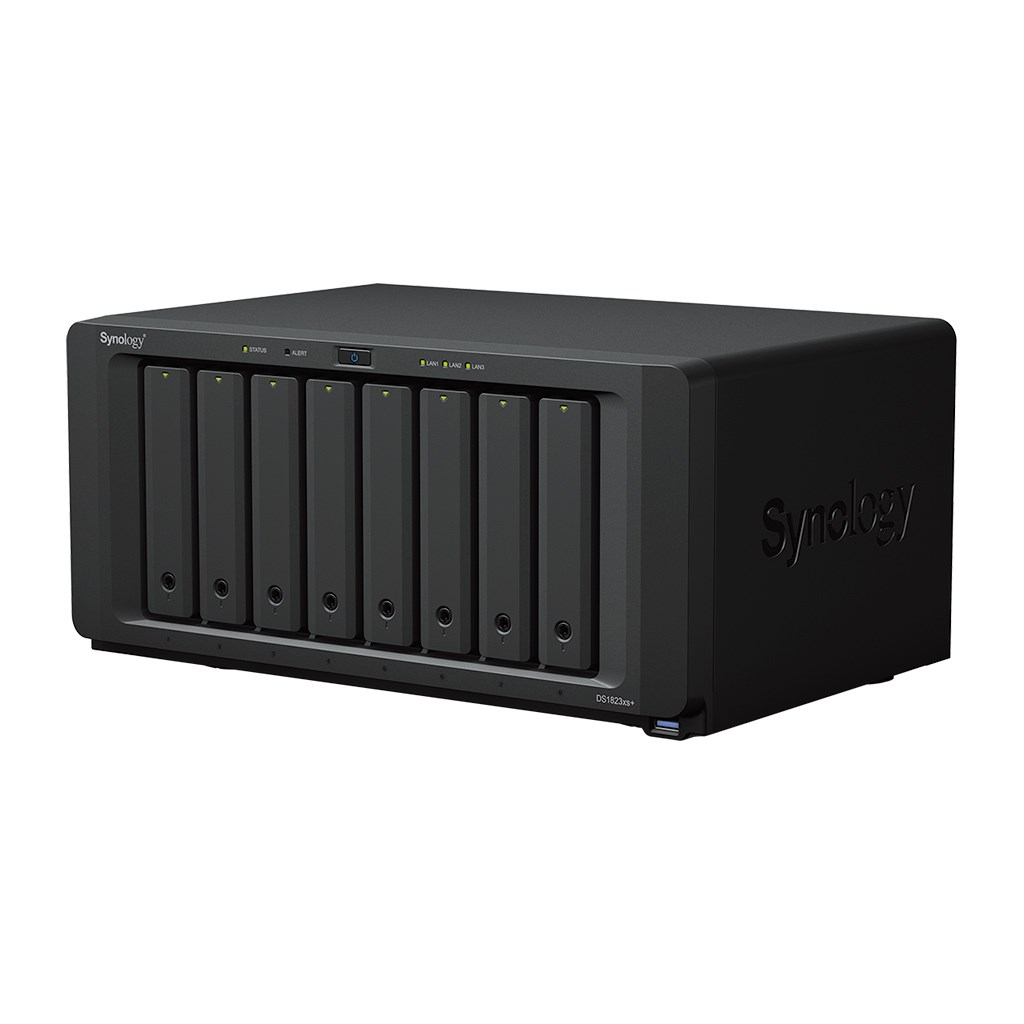

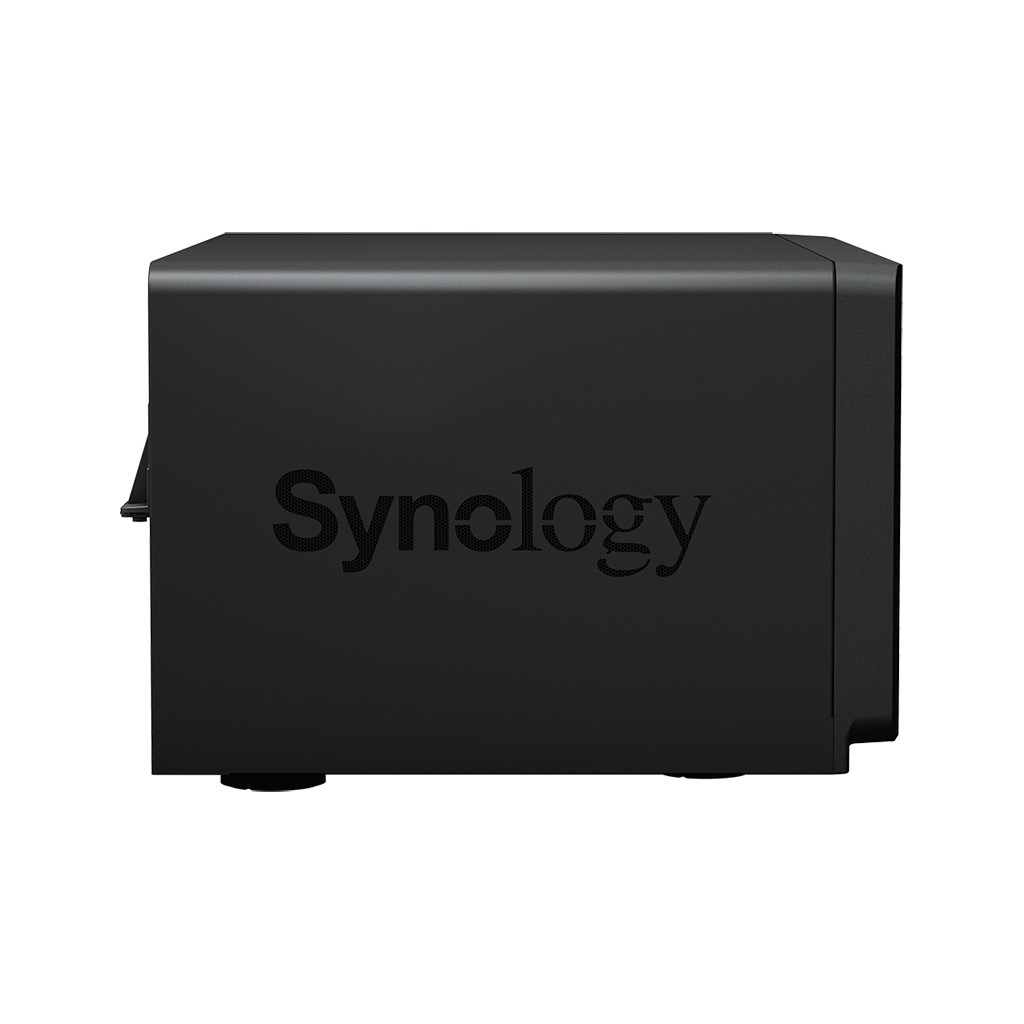

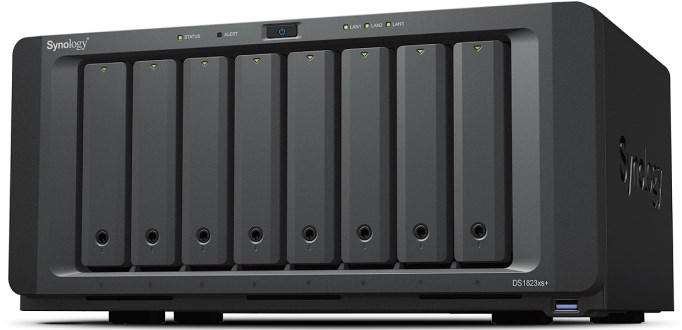

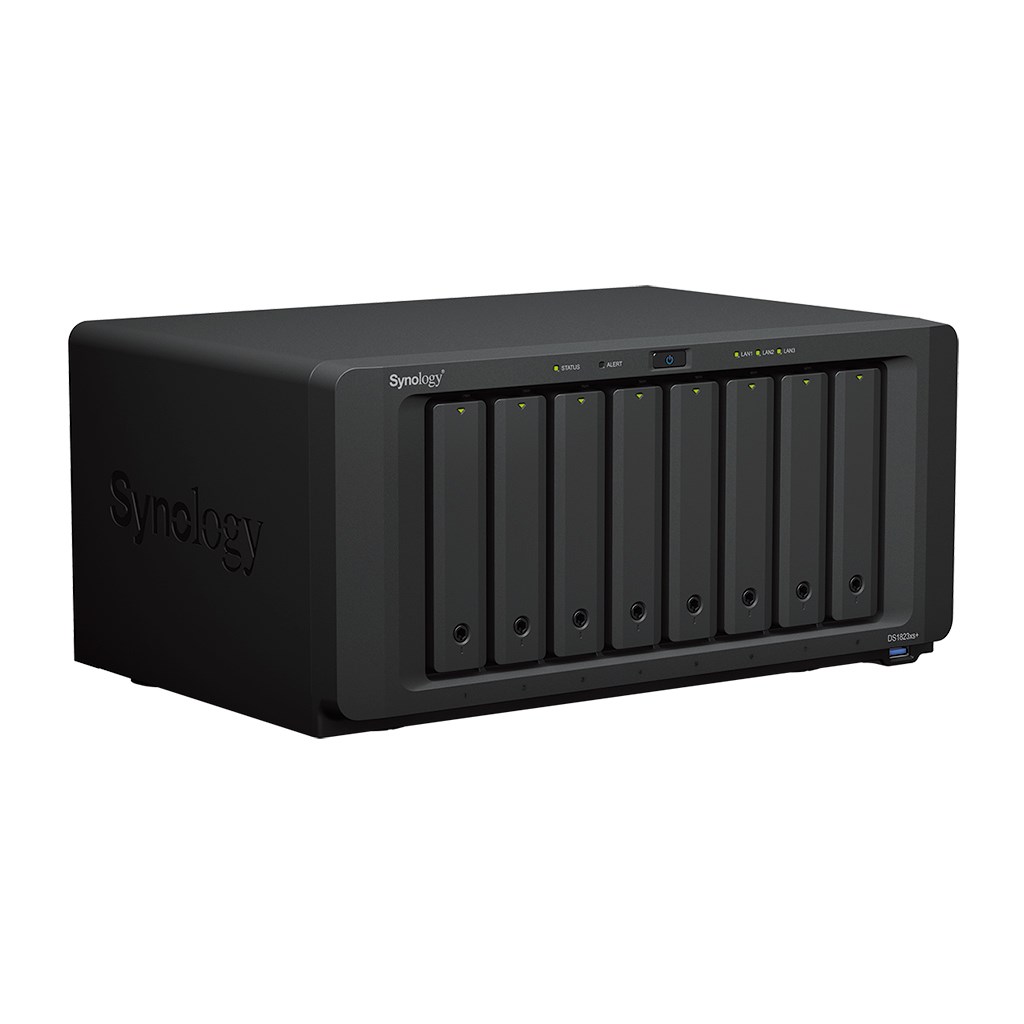

Synology DiskStation DS1823XS+ NAS/storage server Tower Ryzen Embedded V1780B 8 GB DDR4 0 TB DiskStation Manager Black

Other features | Certification

FCC BSMI VCCI RCM EAC CCC KC

Performance | Type

NAS

Power | Redundant power supply (RPS) support

No

Software | Server operating systems supported

Windows Server 2019

Ports & interfaces | Ethernet LAN (RJ-45) ports

4

Performance | Reset button

Yes

Storage | Online RAID expansion

Yes

Design | Number of fans

2 fan(s)

Network | Ethernet LAN data rates

1000 Mbit/s, 10, 10000 Mbit/s, 100

Operational conditions | Storage relative humidity (H-H)

5 - 95%

Design | Built-in speaker(s)

No

Operational conditions | Operating temperature (T-T)

0 - 40 °C

Software | Operating system version

7.1.1

Processor | Number of processors supported

1

Performance | Security algorithms

AES

Performance | Noise level

23.6 dB

Design | Cable lock slot type

Kensington

Ports & interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Network | iSCSI support

Yes

Performance | Backup function

Yes

Software | Operating system installed

DiskStation Manager

Processor | Processor boost frequency

3.6 GHz

Design | Chassis type

Tower

Processor | Processor family

Ryzen Embedded

Storage | RAID levels

6, 5, 0, 10, JBOD, 1

Storage | Supported file systems

Fat, exFAT, HFS+, ext4, BTRFS, ext3, NTFS

Storage | Number of storage drives supported

8

Operational conditions | Operating relative humidity (H-H)

5 - 95%

Memory | ECC

Yes

Performance | On/off switch

Yes

Network | Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 10GBASE-T, 1000BASE-T

Performance | Card reader integrated

No

Weight & dimensions | Depth

243 mm

Memory | Internal memory type

DDR4

Ports & interfaces | USB port

Yes

Performance | System log

Yes

Storage | Number of M.2 (M & B) slots

2

Storage | Total installed storage capacity

0 TB

Power | AC input frequency

50 / 60 Hz

Storage | Supported storage drive interfaces

Serial ATA

Weight & dimensions | Width

343 mm

Performance | Snapshot

Yes

Performance | Backup features

Cloud, iSCSI LUN

Weight & dimensions | Weight

6.2 kg

Packaging content | Power cables quantity

1

Performance | Multilingual support

Yes

Storage | Supported storage drive types

HDD & SSD

Storage | Storage drives installed

No

Power | Power consumption (typical)

87.93 W

Packaging content | Cables included

LAN (RJ-45), AC

Processor | Processor frequency

3.35 GHz

Ports & interfaces | eSATA ports quantity

2

Ports & interfaces | PCI Express x8 (Gen 3.x) slots

1

Processor | Processor generation

AMD Ryzen Embedded V1000 Series

Weight & dimensions | Height

166 mm

Storage | Installed storage drive type

No

Design | Built-in display

No

Performance | Built-in FTP server

Yes

Performance | Browser supported

Google Chrome Firefox Microsoft Edge Safari

Network | Ethernet LAN

Yes

Design | Cooling type

Active

Storage | RAID support

Yes

Memory | Memory form factor

SO-DIMM

Memory | Maximum RAM supported

32 GB

Design | Fan diameter

12 cm

Memory | Memory slots

2

Network | Link aggregation

Yes

Network | Ethernet LAN data rate supported (max)

10000 Mbit/s

Power | Power supply location

Built-in

Design | LED indicators

Yes

Storage | Online RAID migration

Yes

Processor | Processor model

V1780B

Processor | Processor cores

4

Power | AC input voltage

100 - 240 V

Processor | Processor manufacturer

AMD

Performance | Access Control List (ACL)

Yes

Memory | Internal memory

8 GB

Operational conditions | Storage temperature (T-T)

-20 - 60 °C

Performance | Device class

Small & Medium Business

Design | Product colour

Black

Storage | Hot-swap drive bays

Yes

Sustainability | Sustainability compliance

Yes

Design | Cable lock slot

Yes

Power | Number of power supply units

1

Performance | Management protocols

SNMP

Other features | Compliance certificates

RoHS, CE

Storage | Storage drive sizes supported

M.2, 2.5, 3.5"

Power | Power supply unit (PSU) capacity

250 W
