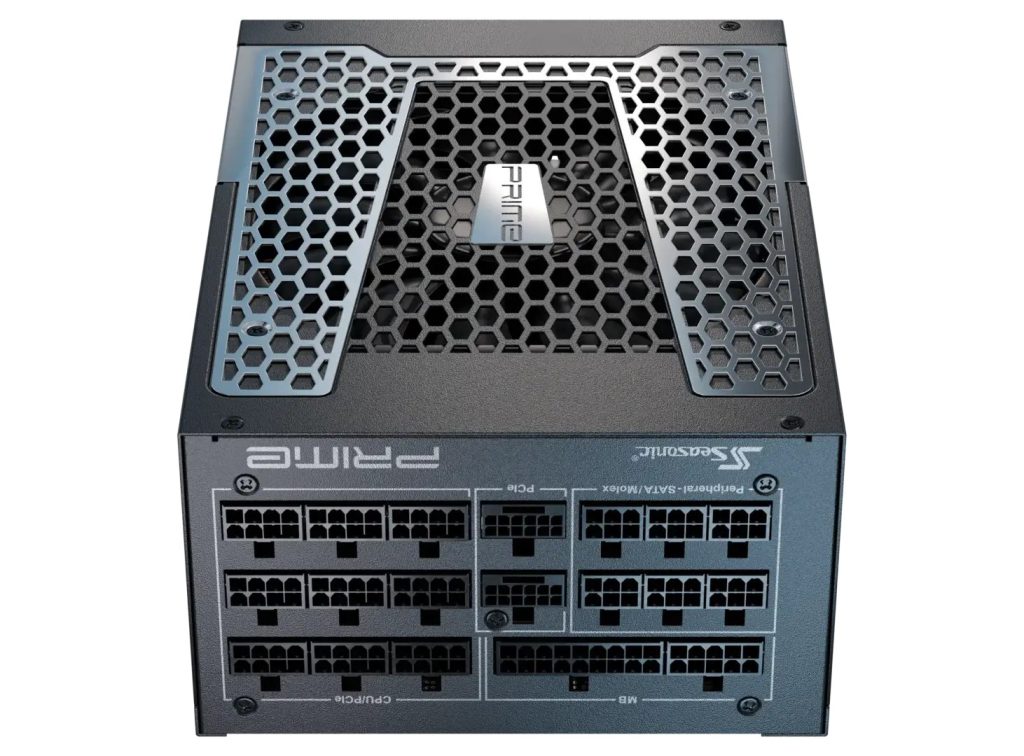

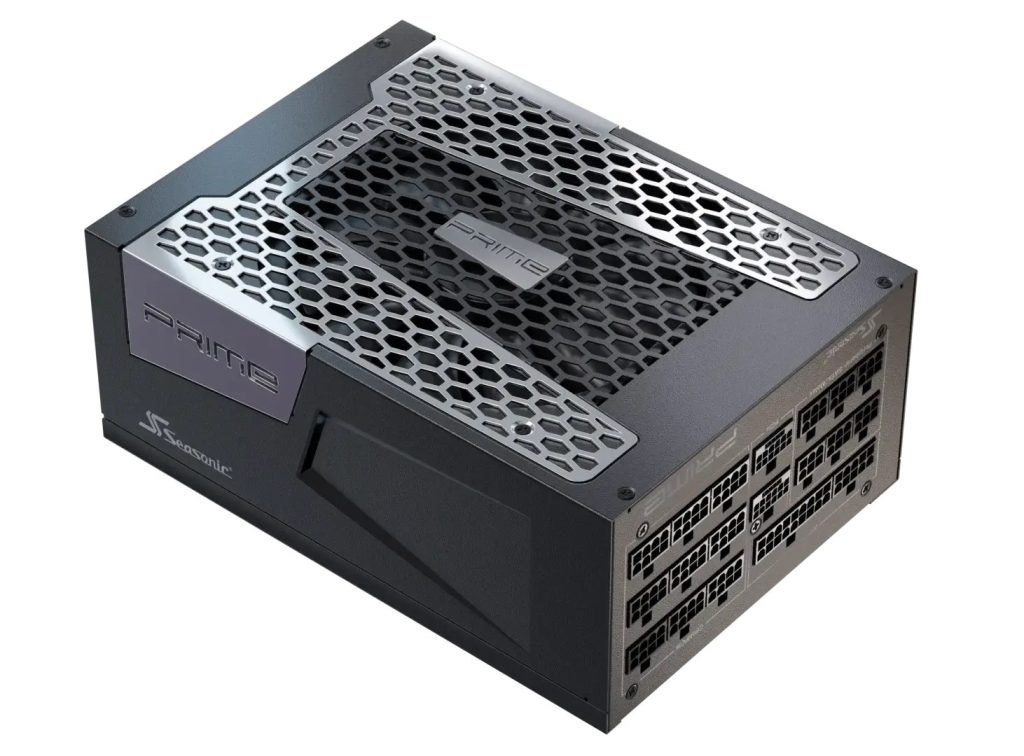

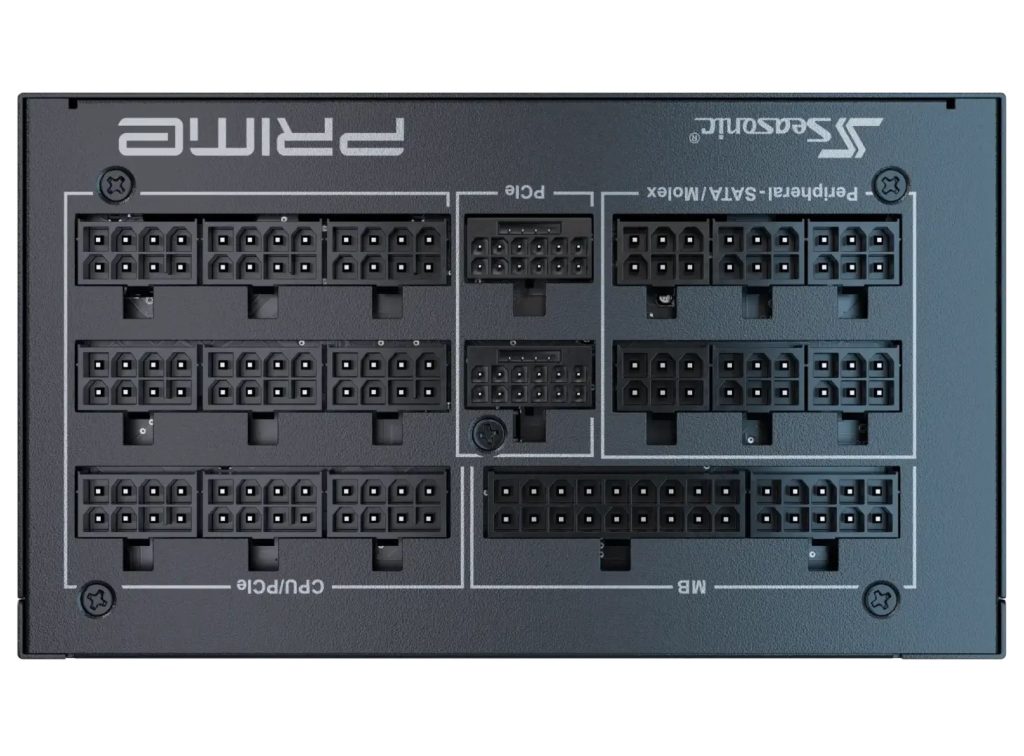

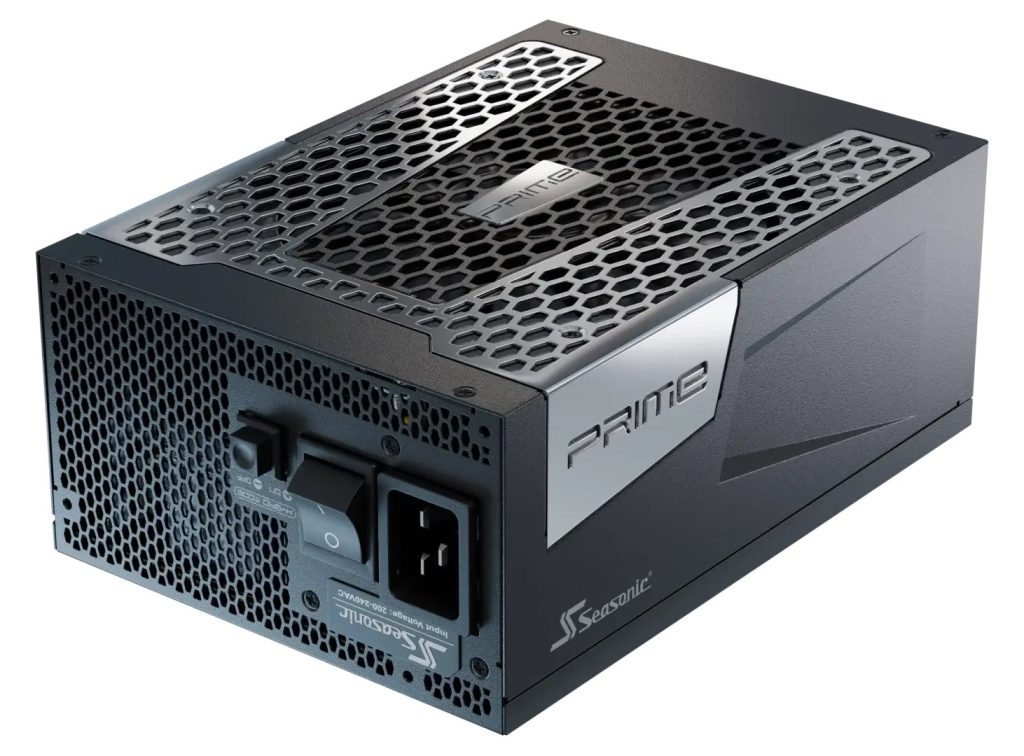

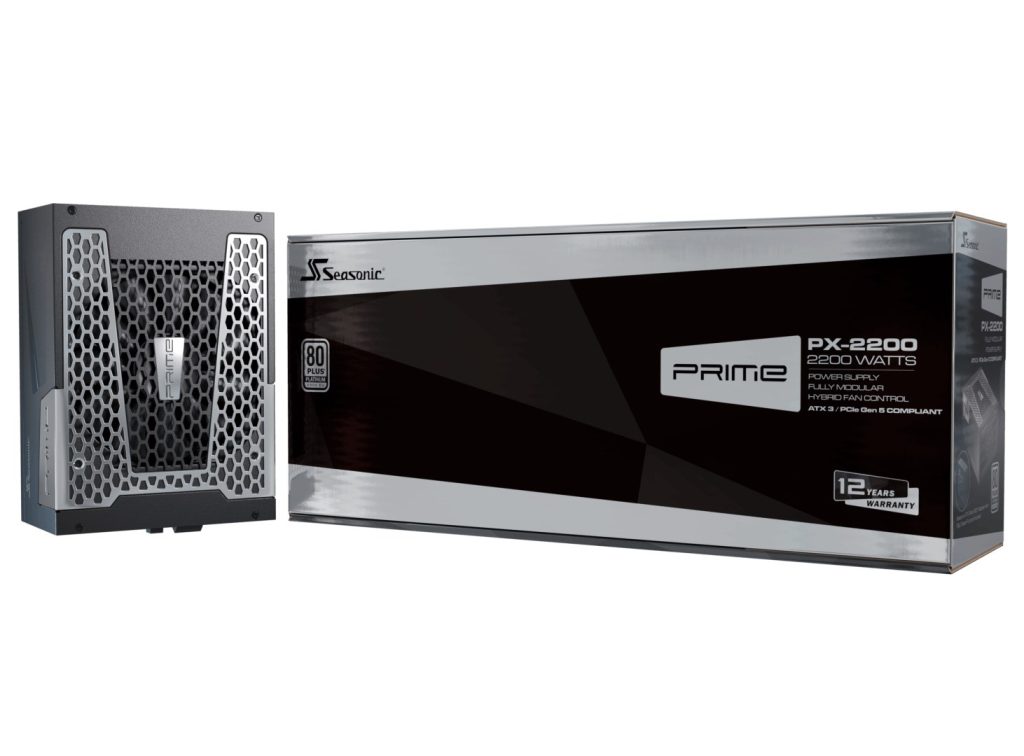

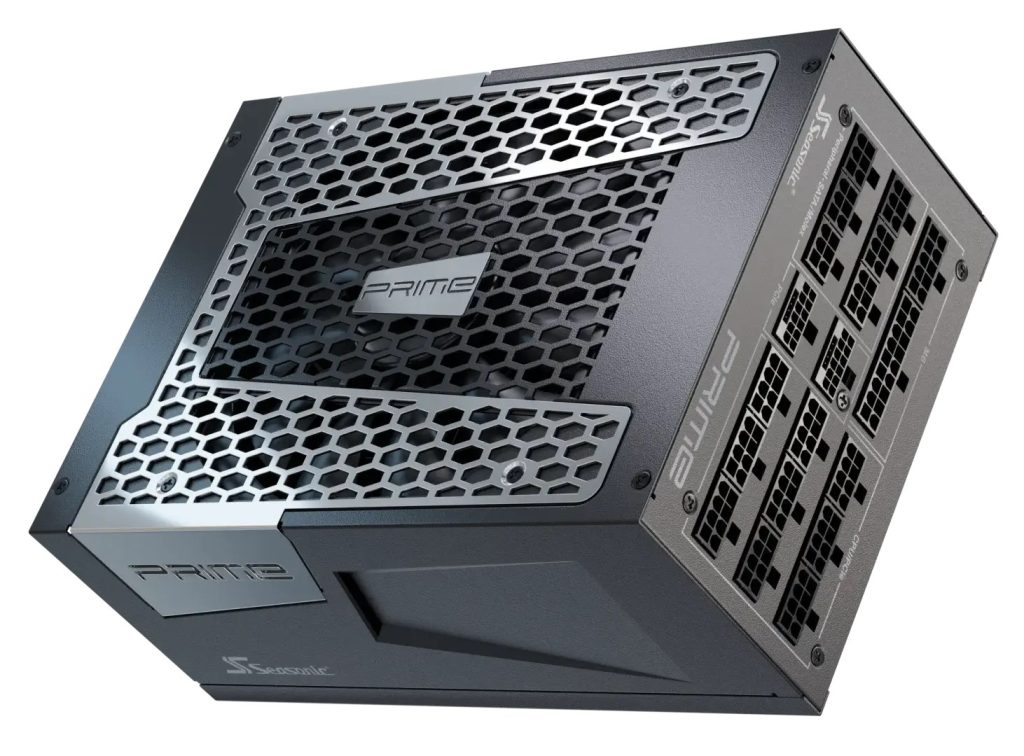

Seasonic Prime PX power supply unit 2200 W 24-pin ATX ATX Black

Operational conditions | Operating temperature (T-T)

0 - 50 °C

Ports & interfaces | SATA power cable length

760 mm, 450 mm, 550, 470, 950 mm, 860 mm, 570

Weight & dimensions | Height

86 mm

Ports & interfaces | Cabling type

Fully-Modular

Packaging content | Cables included

AC, CPU, PCIe, Peripheral (Molex), SATA

Ports & interfaces | EPS power connector (8-pin)

Yes

Design | On/off switch

Yes

Ports & interfaces | CPU power cable length

70 cm

Power | Total power

2200 W

Power | Combined power (+5V)

125 W

Power | Max output current (+3.3V)

25 A

Performance | ATX version

3.0

Design | Fan diameter

13.5 cm

Ports & interfaces | Peripheral (Molex) power connectors (4-pin)

3

Power | Combined power (+3.3V)

125 W

Design | Cooling type

Active

Performance | Purpose

PC

Performance | Power supply unit (PSU) form factor

ATX

Design | Product colour

Black

Power | Combined power (-12V)

6 W

Performance | Bearing technology

FDB

Weight & dimensions | Depth

210 mm

Design | Number of fans

1 fan(s)

Power | Max output current (-12V)

0.5 A

Weight & dimensions | Width

150 mm

Performance | 80 PLUS certification

80 PLUS Platinum

Ports & interfaces | Motherboard power cable length

61 cm

Performance | Mean time between failures (MTBF)

150000 h

Power | Max output current (+5V)

25 A

Packaging data | Package type

Box

Power | Combined power (+5Vsb)

15 W

Power | AC input voltage

115 - 240 V

Power | Input current

15 A

Certificates | Compliance certificates

RoHS, CE, WEEE, CCC, REACH

Packaging content | Cable tie(s) included

Yes

Ports & interfaces | Number of SATA power connectors

10

Power | Max output current (+5Vsb)

3 A

Ports & interfaces | Peripheral (Molex) power cable length

690 mm, 470

Ports & interfaces | Motherboard power connector

24-pin ATX
